C Type

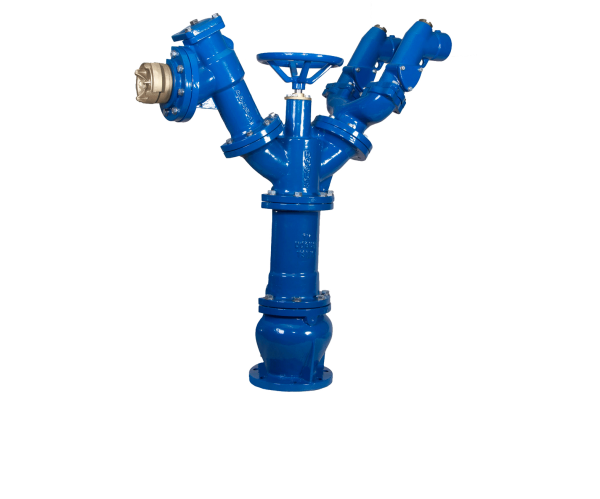

DVD C Type Irrigation Hydrants have a special closing mechanism enabling gradual flow increase/decrease when the handwheel is turned, preventing slam closure.

Hydrants are available with an optional anti-frost sleeve for deep water networks, and an automatic drainage valve to bleed the body when the hydrant is closed, to prevent frost damages.

Nozzles that are used in hydrant connection have integral pressure regulator and flow limiter in order to provide constant pressure and flow rate to the farmer. Number of nozzles on the body can be increased up to 4 outlets, enabling supply to more than one farmer from a single hydrant.

Nominal Size
DN100-150 x 65-80-100

Nominal Pressure
PN10-16

Face to Face
-

Body Material Options
Ductile Iron

Accessories
Pressure Regulator
Flow Limiter
Proportional / Ultrasonic Watermeter
Threaded / Ball Valve / Quick Coupling Connection
Short / Long Type
1x4 Outlet Options

Flange Standards
EN 1092/2
