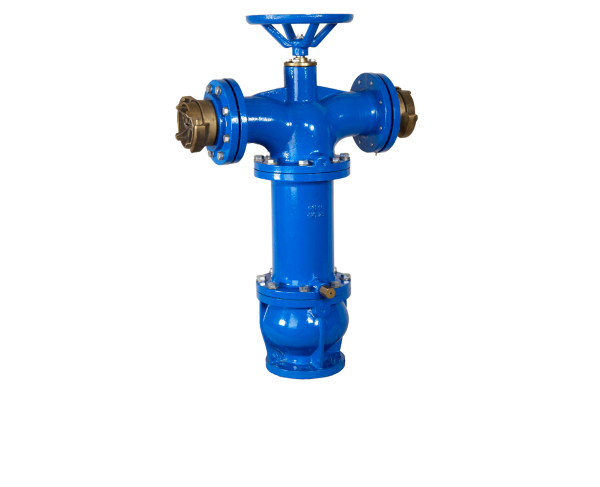

D Type

DVD D Type Irrigation Hydrants have a special closing mechanism enabling gradual flow increase/decrease when the handwheel is turned, preventing slam closure.

Hydrants are available with an optional anti-frost sleeve for deep water networks, and an automatic drainage valve to bleed the body when the hydrant is closed, to prevent frost damages.

D Type Hydrants are used in low pressure applications where the outlets have a flow limiter in order to provide constant flow rate to the farmer. Number of outlets on the body can be increased up to 2 outlets, enabling supply to more than one farmer from a single hydrant.

Nominal Size
DN100-150 x 100-150

Nominal Pressure
PN10-16

Face to Face
-

Body Material Options
Ductile Iron

Accessories
Flow Limiter
External Pressure Regulator
External Proportional / Ultrasonic Watermeter
Threaded / Ball Valve / Quick Coupling Connection
Short / Long Type
1x2 Outlet Options

Flange Standards
EN 1092/2
