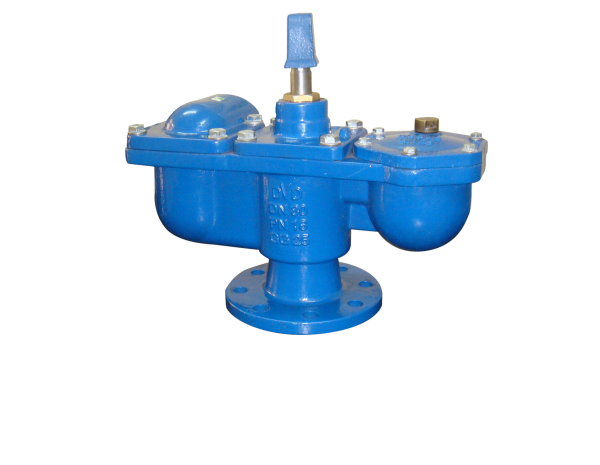

Integral Isolation Valve & Triple Function

DVD Air Valves with Integral Isolation Valve are designed to perform three functions:

1. Venting of large volumes of air on the start-up of the system, while pipelines are filled.

2. Intake of large volumes of air on shut-off of the system, which pipelines are being drained.

3. Discharge of pressurized air pockets during the operation.

In addition to these functions, the Air Valve has an Integral Isolation Valve, enabling isolation of the sealing parts for cleaning and maintenance.

Nominal Size
DN50-DN150

Nominal Pressure
PN10-40

Face to Face
-

Body Material Options
Ductile Iron
Carbon Steel
Stainless Steel
Nickel Aluminum Bronze

Accessories
Cleaning Plug
Manifold Connection
SS Floats

Flange Standards
EN 1092/2
BS 4504
BS10E
ANSI
